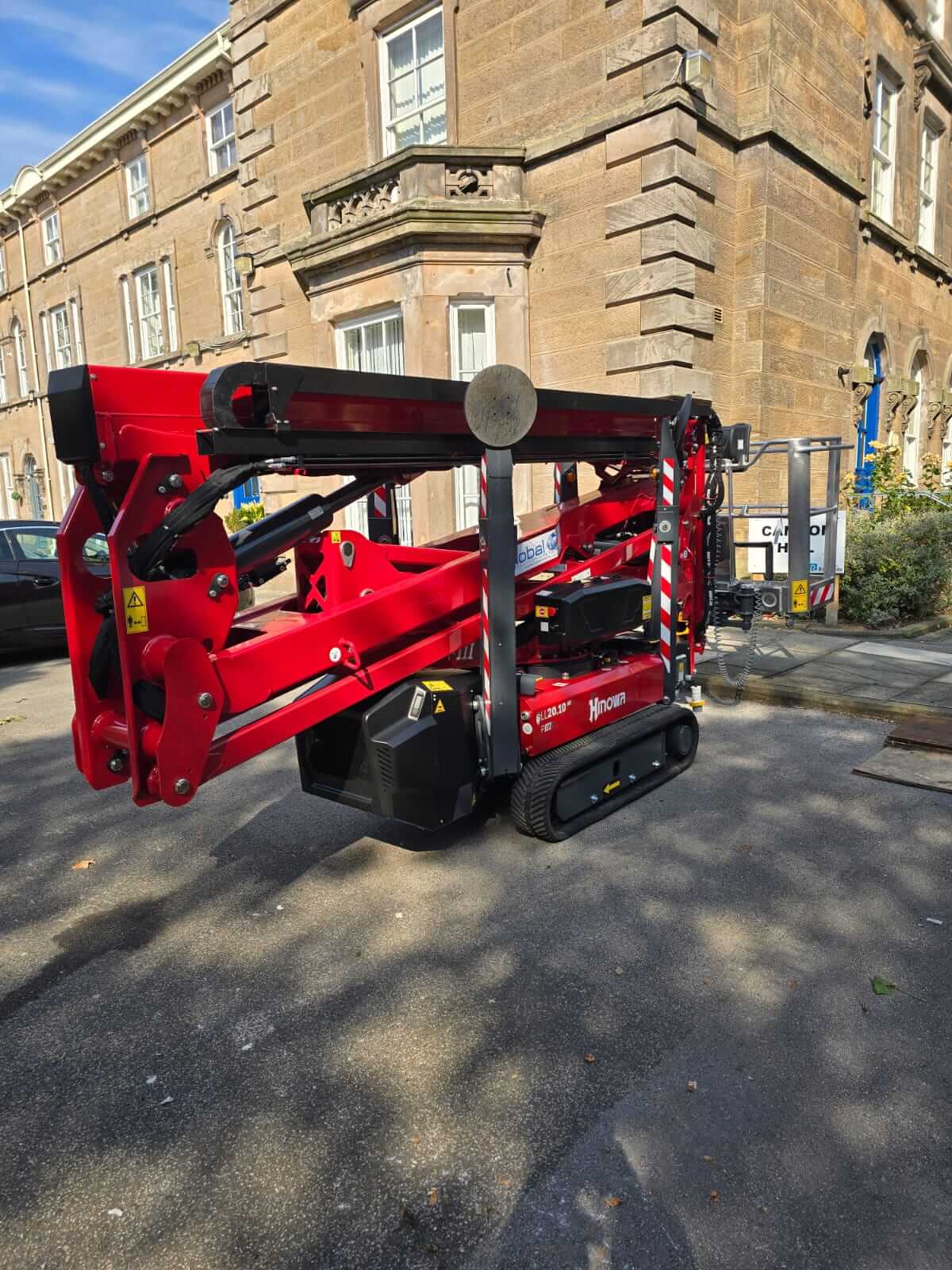

Need a powerful and manoeuvrable aerial work platform? Look no further than the Hinowa Lightlift 20.10. This compact lift offers exceptional performance and efficiency, making it ideal for a wide range of applications.
Key Features
- Performance IIIS System: Streamline your workflow with automated outrigger deployment, levelling, and retraction.
- Auto-Speed Control: Adapt to various ground conditions for optimal performance.
- Wireless Remote Control: Enjoy greater flexibility and convenience.
- Compact Design: Easily navigate narrow spaces with a minimum travel width of less than 0.8m and a stowed height of less than 2m.
- Impressive Reach: Achieve a working height of up to 20.1m and a maximum horizontal outreach of 9.7m.
- Safe Working Load: Support your equipment and materials with a safe working load of 230kg.
- Power Options: Choose from diesel or mains electric (110 or 220V) for operation
- Operating Options: Available for both operated and self-drive rental.
Technical Specification
| Working height | 20m |
| Outreach | 9.5m |
| Basket Capacity | 230kgs |
| Machine Weight | Machine Weight |
| Minimum Width | 795mm |
| Power | Diesel/110v (requires a 5KVa continuous transformer) |
| Safe working load | 230kgs |
| Platform height | 18m |
| Closed width | 795mm |
| Closed height | 1998mm |
| Non-marking tyres | No |
| Indoor use | Yes |
| Outdoor use | Yes |
| Closed length (With Basket) | 5011mm |
| Closed Length (Basket Removed) | 4390mm |
| Basket Rotation | Yes |
| Manufacturer | Hinowa |
Industries
- Agriculture & Forestry
- Cleaning (Internal / External)
- Electrical (Internal / External)
- Energy Supply (Internal / External)
- Facilities Management (Internal External)
- Joinery & woodwork (Internal / External)
- Mechanical Engineering (Internal / External)
